open 8-bit computer


MEGA65 is an open-source new and open C65-like computer.

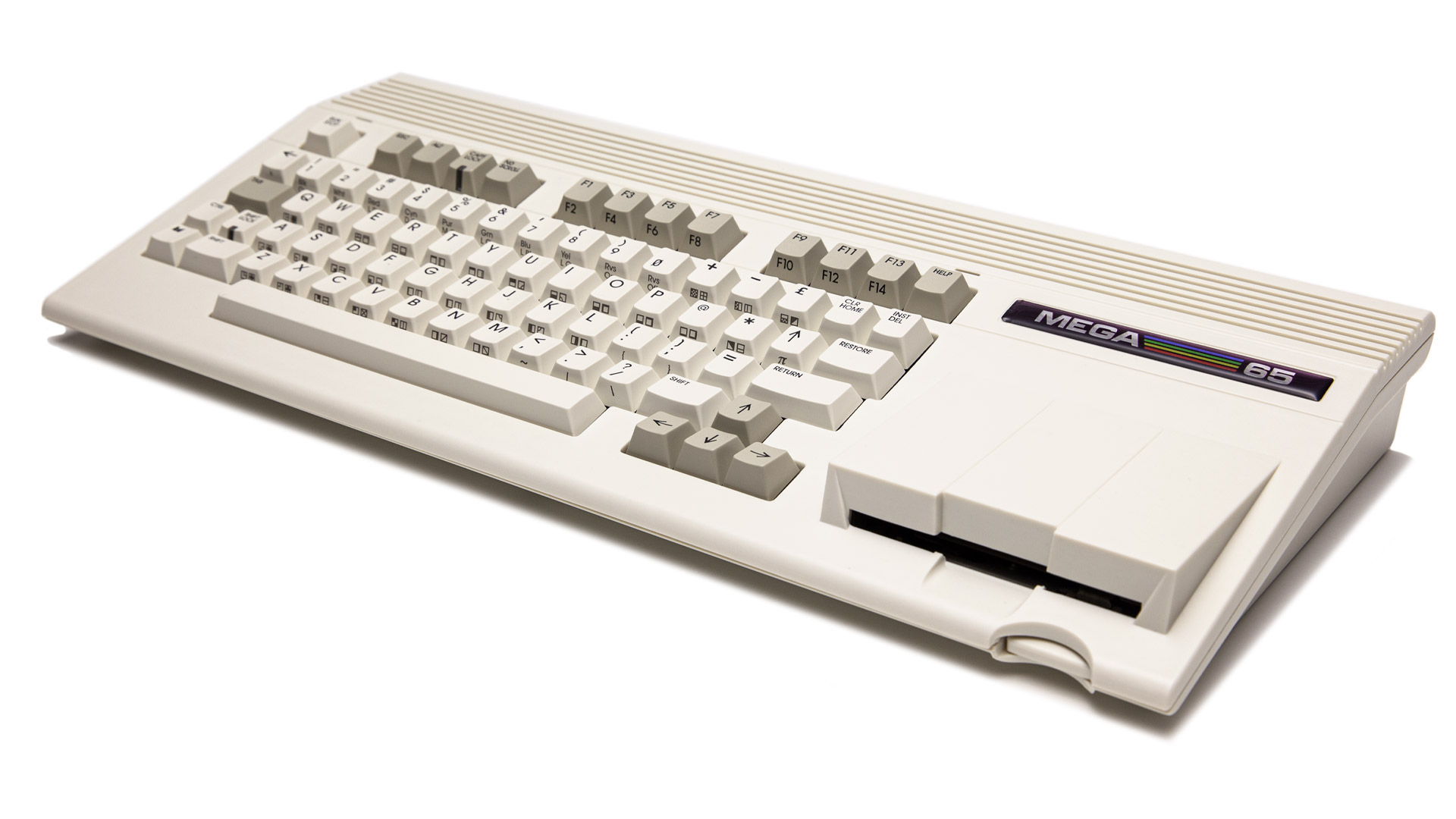

The 21st century realization of the C65 heritage: A complete 8-bit computer running around 50x faster than a C64 while being highly compatible. C65 design, mechanical keyboard, HD output, SD card support, Ethernet, extended memory and other features increase the fun without spoiling the 8-bit feel. Hardware designs and software are open-source (LGPL).

News


About Us


André Kudra is a member of MEGA Museum of Electronic Games & Art and CIO of esatus AG, The CISO Consulting Company. Having experienced the great C64 and Amiga days first hand when he was younger, he is still a Commodore enthusiast and collector.

Andrew Owen is a professional writer who started out as a newspaper reporter and currently works in the videogames industry. For the past 16 years he has been designing an 8-bit computer based around the Z80 CPU - but now he's all-in for the MEGA65!

Antti Lukats has a tremendous number of FPGA projects on hackaday.io, and they’re all open source. If you’re looking for street cred with FPGAs, Antti has it. His Hands-on experience with FPGAs and CPLDs stretches back to the very first chips in the 70s.

Detlef Hastik is founder of MEGA Museum of Electronic Games & Art and CEO of SYGNOMI IT innovations GmbH. Detlef has been collecting home computers and game consoles for the past 30 years before he came up with the MEGA65 project and building the "final 8-bit machine".

Dieter Penner is retro freak, MEGA's hardware expert and inventor for many years. He resurrected Tennis for Two and gave us the MEGA65 widget board. Dieter is a professional PCB designer and a great lateral thinker. He prefers a floppy disk over a usb stick at any time.

Paul Gardner-Stephen wrote software for a dual-processor 6502 industrial roll-former at the age of 17, but still likes programming 6502-based systems. Owning a C65 prototype for 15 years, he is the original instigator, VHDL engineer and system architect of the MEGA65.

Ralph Egas is founder and CEO at Abstraction Games. Long time fan of 8-bit machines and GEOS power user back in the day. Software engineer by trade.

You! We need people in development, management and marketing (social media) to get things right and prepare for the big crowdfunding campaign. Become part of a great team of inventors!

Partners


Organizational structure behind the MEGA65 computer production

Trenz Electronic develop, manufacture, integrate and sell FPGA and SoC modules for business and science. Trenz Electronic design and build the MEGA65 mainboards and also assemble and sell the final machines.

GMK Electronic Design design and manufacture high-end electronic modules and software applications for the professional use. GMK Electronic Design construct and manufacture the Cherry-MX-based MEGA65 keyboards.

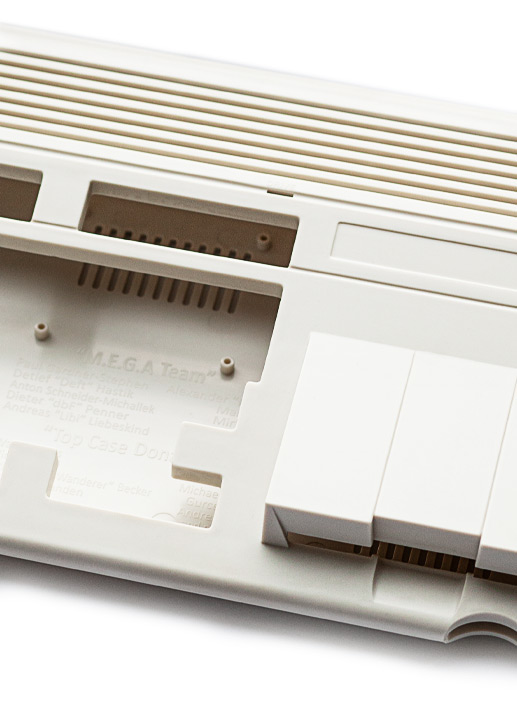

Hintsteiner group produce industrial models, molds, carbon technology, prototypes and small series since 1981. Hintsteiner group build the MEGA65 cases for the developer versions as well as the final production line cases.


MEGA Museum of Electronic Games & Art is dedicated to conservation, preservation, documentation and public availability of digital cultural assets in the area of entertainment, information & communications technology, as well as electronic games and digital art. MEGA Museum of Electronic Games & Art is the initiatior of the MEGA65 project providing VHDL design, management, promotion and the necessary funds to the project.

Press

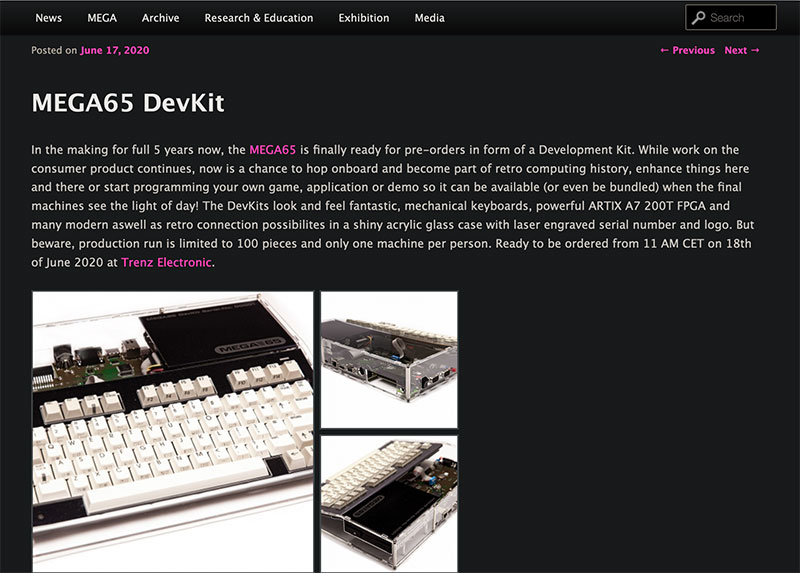

An excerpt of the first MEGA65 press appearances



Impressions


Progress & Stats


89

Case

96

VHDL

84

GEOS Adaption

92

Mainboard

23

Software Bundle

65

Brand Establishment

8359

Lines 6502 asm code

3193

GIT Commits

26876

Lines of VHDL

50

MHz CPU

150

MHz VIC-IV

18

People involved

3120

Working hours

390

Days invested

Timeline


  • 1st
    half of
    2018

    MACHINES!

    20 machines to heat things up

    Production of the first batch of developer machines. These are dedicated to key stakeholders: Software developers, former C65 engineers, community influencers and journalists of retro-magazines.

  • 2nd
    half of
    2017

    PARTNERS

    Experts building the MEGA65

    MEGA identifies further strategic partners, ideally suited for producing MEGA65 hardware components: GMK electronic design as expert for keyboard design and production; Hintsteiner Group being specialized in case tooling and production, and Trenz Electronic as creator of mainboards, for assembly and distribution.

  • 1st
    half of
    2017

    MAINBOARD

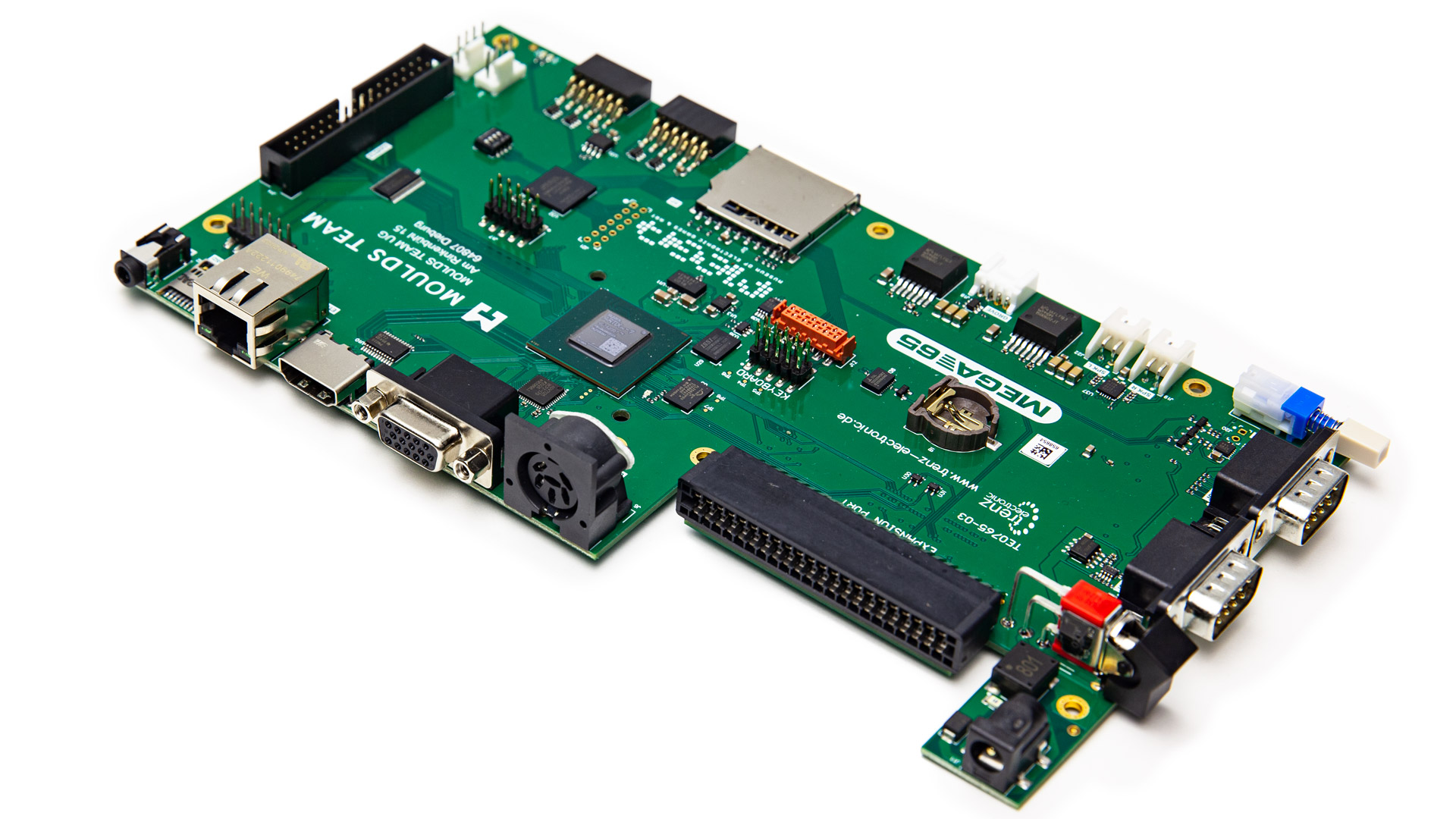

    MEGA65 rev.1 board

    Trenz produces MEGA65 rev.1 mainboard. The prototypes are presented over Easter at the world-renowned demoscene-party Revision in Saarbrücken.


  • 2016

    PROTOYPE II

    1:1 copy of the C65

    MEGA65 presents the 2nd prototype, an exact replica of the original C65. More experts join the MEGA65 team: Software engineer Ralph Egas, technical writer Andrew Owen and FPGA guru Antti Lukats from Trenz Electronic GmbH, first strategic delivery partner of the MEGA65 project.

  • 2nd
    half of
    2015

    PROTOYPE I

    Artix-7 plus MEGA65 extension

    Hardware engineer Dieter Penner joins the project which delivers the first alpha-series prototype. It leverages Digilent's Nexys 4 Artix-7 FPGA development board and a case closely resembling the original, produced in a selective laser sintering (SLS) prototyping process.

  • 1st
    half of
    2015

    MEGA EV

    MEGA65 project starts

    Thinking about creating a C65 demo, MEGA board member Detlef Hastik immediately realizes the potential of Paul's concept. With MEGA's thrive for preserving mankind's digital heritage, the idea is born to re-build C65 computers, Paul joins MEGA. MEGA member Andre Kudra gets hold of a working C65 as study object.


  • 2014

    The creator

    slightly mad scientist

    Paul Gardner-Stephen once had one of the legendary C65 prototype machines. Remembering how much he loved programming it at some point in time he starts recreating it in VHDL. With this courageous and ambitious step, he kicks off what later becomes the MEGA65 project.

DONATE


We are giving away the designs for free which take considerable time, effort and money to create.

While it is possible for anyone to download the sources for the FPGA, we are offering a service to keep you updated with the latest core files and infos. We ask for a donation of at least EUR 5 to help us provide this service and contribute to ongoing development. A project like this involves much greater costs than this, so larger donations are appreciated. Talk to us about special recognition for substantial donations.

Donate and get registered

Thank you very much! It's people like you that keep us going.

Video


A video showing the MEGA65 computer in action.

MEGA65 facts


For those interested in details, here are some current technical specifications of the MEGA65. These details are subject to change as we progress through the project.

CPU

  • 50MHz GS4510 single-core, in-order, no-branch-prediction, no-cache, single-scalar, no-fpu, no-smd, no-HCF, non-pipelined, enhanced 4502 8-bit processor

  • Including:
  • 32-bit ZP indirect and 32-bit far-JSR/JMP/RTS operations
  • 28-bit address space
  • Fast hypervisor traps
  • Virtual memory
  • IO virtualisation (coming soon)
  • Synthmark64 score: 51.1x (C64 = 1x)
  • Bouldermark score: 32,509 (C64 = 313)

DMA

  • C65 DMAgic compatible DMA controller
  • Fills at 50 MB/sec, copies at 25 MB/sec, swaps at 12.5 MB/sec
  • VIC-IV advanced rasterised video controller, like the VIC-II and VIC-III no framebuffer
  • Native resolution 800x600 (100MHz pixel clock)
  • Supports all documented VIC-II modes (hi-res, multi-colour mode, extended-background-colour mode, sprites) and VIC-III modes (bitplanes are in the process of adding)
  • Independent horizontal and vertical hardware scaling allows text and graphics resolutions as high as 800x600 and as low as 60x38
  • Separate 256-colour palettes for sprites, bitplanes and character graphics, allowing upto 1,024 colours on screen without changing the palette in real-time
  • VGA and HDMI output 23-bit colour (8.3 million colours)
  • Text mode extensions including proportional width characters, super-extended background colour mode, as well as the standard VIC-III extended attributes
  • Dual soft-SIDs + optional dual hard SIDs
  • D81 disk images from SD card (native VFAT32 file system support coming soon).
  • Real 3.5" floppy drive support

  • Loading speeds:
  • Without fast loader: ~20KB second
  • Directly from SD card: 300 - 3000KB/second (1200 - 12000 blocks per second), depending on SD card

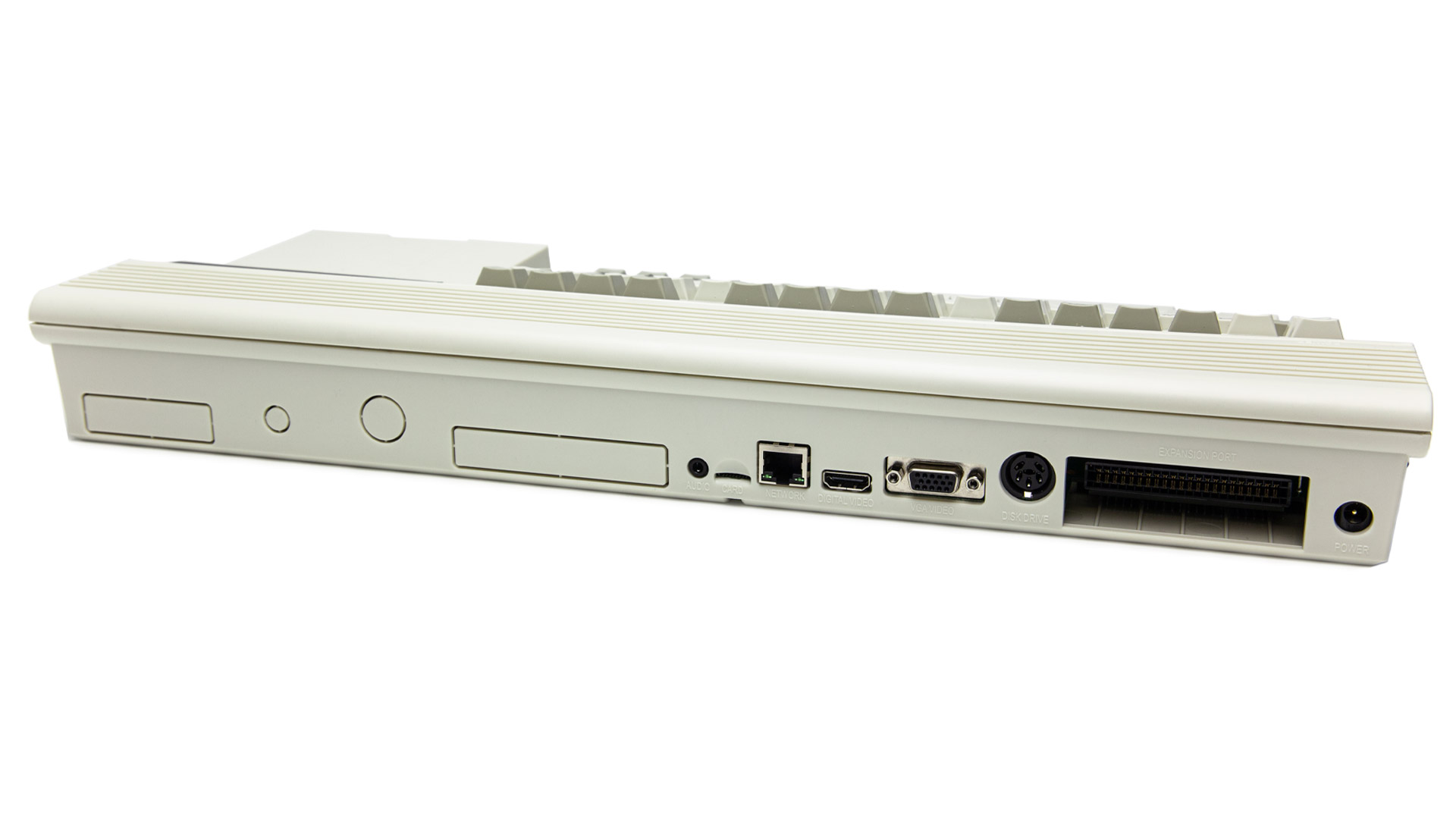

  • Joystick ports 1 and 2 (9-Pin Atari Standard)
  • HDMI
  • VGA
  • 10/100mbit Ethernet
  • Stereo audio
  • C64 type expansion port
  • IEC disk drive port
  • Internal expansion port
  • USB and Micro USB debug interface

  • Planned:
  • Analog video
  • Micro USB debug interface
  • Ethernet
  • Micro SD slot
  • MEGA-OS all-in-one hypervisor and compat operating system

  • Including:
  • Integrated freezer and task switcher
  • VFAT32 file system driver
  • Inter-process communications
  • C65-like all-in-one
  • Right now:
  • Use Ophis with the -4 option to target the 4502 CPU. The etherload utility can be used to push compiled programs to the MEGA65 practically instantly to make for a convenient cross-platform development environment.

  • Upcoming:
  • MEGA-OS will support interprocess communications, making it possible to write assemblers and compilers that assemble directly into a separate process, and then launches that process when it is ready. Thus it becomes possible to use the MEGA65 as an 8-bit development platform for 8-bit software (or to run a cross-compiler for Linux or Windows if you wish to be really strange).
